  On 3/12/2024 at 8:03 PM, ukbajadave said:

Is there a trick to aligning big CV joints like universal joints? My specific example is this new CV to UJ

Expand

It's effectively inside out from the U-joints, so you want to match these pins to the orientation of the holes on the U joint, on the intermediate shaft with joints at both ends. (same as 2 U joints want them to match)  I think that means your picture is correct.


Posted (edited)
  On 3/12/2024 at 8:03 PM, ukbajadave said:

Is there a trick to aligning big CV joints like universal joints? My specific example is this new CV to UJ

Expand

Why would you need that? As far as I understand, the name CV = Continuous Velocity means exactly that it does not have the oscillating velocity problem of U-joints. So there is not need to align them. And I guess when you have one CV and one UJ, it still does not matter how you put them, since one of them is continuous, so there's nothing to align with. But anyway, when I use two CVs, I align them to the same orientation just to make it look better.

Edited by gyenesvi
Posted

@Stereo That seems logical so I'll do that, cheers :classic:

  On 3/12/2024 at 8:13 PM, gyenesvi said:

Why would you need that? As far as I understand, the name CV = Continuous Velocity...

Expand

Interesting point, is part 52731 Large CV Joint actually a constant velocity joint or instead a larger universal joint? I mean sure, Lego calls it a CV but on actual cars they are a little more complex and full of ball bearings and stuff.

Posted (edited)

Oh, I never looked closely to the small/large ones to notice they swapped the "male"/"female" parts, so the one with the axle-holder has the nubs on the large version, and the axle has the slots.  They're still mechanically the same universal joints, just with sliding instead of a 3rd moving part.



Just to confirm things I wiggled the 948L skidder around, since it uses a single one instead of a center differential, and as expected at 0/90 to the steering axis they stay in phase, but if the CV joint is at 45 degrees, steering it will make one of the axles roll forward while the other stays still.  It's lego so there's enough slack in the gears it doesn't really matter for driving of course.

Edited by Stereo
Posted
  On 3/12/2024 at 8:24 PM, ukbajadave said:

@Stereo That seems logical so I'll do that, cheers :classic:

Interesting point, is part 52731 Large CV Joint actually a constant velocity joint or instead a larger universal joint? I mean sure, Lego calls it a CV but on actual cars they are a little more complex and full of ball bearings and stuff.

Expand

Yeah, I have been thinking about that too, whether it is just called like that as it approximates the real thing or is it actually close to constant velocity.. I'd tend to think that out of all the lego joints, the new large CV joint has the most stable velocity though. But yeah, I guess the best is to align as @Stereo suggests, can't really harm things.

  On 3/12/2024 at 8:32 PM, Stereo said:

Oh, I never looked closely to the small/large ones to notice they swapped the "male"/"female" parts, so the one with the axle-holder has the nubs on the large version, and the axle has the slots.  They're still mechanically the same universal joints, just with sliding instead of a 3rd moving part.

Expand

Upon looking up a video of a real CV joint, sure they are more complex, but I'd think the actual conceptual difference between the U-joint and a CV joint is exactly that sliding motion instead of the 3rd moving part. I'd tend to think that the fact that the large lego CV joint has the spherical surface that slides as it rotates is what allows it to rotate without oscillations. It seems to me that a real CV joint also has that sliding in it, albeit with more nubs (3-6 instead of 2), and the nubs are actually ball bearings to make it smoother. But the principle seems the same in the lego version I guess.

Posted

I vaguely remember a youtube video where someone had lots of universal joints out of alignment to demonstrate the cumulative effect. I only have 4 of the new bigger "CV" so probably too few to be  noticeable, but if someone else has lots how about an experiment?

Posted
  On 3/12/2024 at 8:54 PM, ukbajadave said:

I vaguely remember a youtube video where someone had lots of universal joints out of alignment to demonstrate the cumulative effect. I only have 4 of the new bigger "CV" so probably too few to be  noticeable, but if someone else has lots how about an experiment?

Expand

This maybe?

I think the CV joints are actually constant velocity, it's the third part in the middle which makes an U-joint not constant velocity.

Posted (edited)
  On 3/12/2024 at 8:44 PM, gyenesvi said:

Upon looking up a video of a real CV joint, sure they are more complex, but I'd think the actual conceptual difference between the U-joint and a CV joint is exactly that sliding motion instead of the 3rd moving part. I'd tend to think that the fact that the large lego CV joint has the spherical surface that slides as it rotates is what allows it to rotate without oscillations. It seems to me that a real CV joint also has that sliding in it, albeit with more nubs (3-6 instead of 2), and the nubs are actually ball bearings to make it smoother. But the principle seems the same in the lego version I guess.

Expand

I suppose my argument is that you can always place a virtual 3rd part in the slider and it'll join to the 2 parts as it would if it existed.  It's not the easiest thing to find good reference on but the ball bearings in Rzeppa joints are actually splitting the angle between input and output in half, and acting like a double U joint.  They don't stay fixed relative to either component.  And now I'm questioning the old 8880 "CV" balls too since that other thread brought them up.  Unfortunately I don't have that set to look closely at how it works.  I do have 8444, not sure it's the same part for its swash plate offhand.

Edited by Stereo
Posted
  On 3/12/2024 at 9:39 PM, Stereo said:

And now I'm questioning the old 8880 "CV" balls too since that other thread brought them up.  Unfortunately I don't have that set to look closely at how it works.  I do have 8444, not sure it's the same part for its swash plate offhand.

Expand

Yeah, that uses the same system of parts, I'm pretty sure

  • 3 weeks later...
Posted

Another pain on this MOC.
I do not understand how to hold the red coin and the 2 small yellow rings.
Thanks for your help


Posted

@buzzy440

Let's not open a new topic for similar questions about the same set/moc. Use the topic you already created today.
You can also use the main Generic Building Help Topic for questions like these.
I will merge it.

  • 2 weeks later...
Posted
  On 4/11/2024 at 1:37 PM, tomek9210 said:

How hard is the Daytona shock absorber compared to the extra hard 9.5L yellow/black one?

Expand

Quite a bit harder, I'd say more than double; just compared squeezing 2 of the yellow ones vs a big blue one, and still the blue one feels harder to me.

  • 2 months later...
Posted

Does someone happen to have a few Zamor spheres (part 54821)? I have a GBC-related idea which would benefit from filler balls such that they would move inside the module but not exit it so I was thinking of a ball that is slightly larger so that it could easily be separated from usual GBC balls with a grate that has 2L wide openings. So I'd appreciate if someone could make a little test build for me with the aforementioned grate and see if the Zamor spheres are caught but not stuck in it (as in they roll off easily) in it while GBC balls pass through. I'd also be interested in knowing whether Zamor spheres would fit easily between pins or axles that are 3L apart.

Posted
  On 6/19/2024 at 6:04 PM, Carsten Svendsen said:

The Zamor balls are wider than 2L and would not fit though unless forced. I'm certain of this, I've tried it myself before

Expand

Thanks! I wonder how much force does it take to push them through, is there a danger of them getting stuck if dropped/poured over the grate or are they large enough to always roll over it?

Posted
  On 6/20/2024 at 7:17 AM, howitzer said:

Thanks! I wonder how much force does it take to push them through, is there a danger of them getting stuck if dropped/poured over the grate or are they large enough to always roll over it?

Expand

There are many topics discussing Zamor balls. Showing results for 'zamor'. - Eurobricks Forums
In general, they are 2mm bigger than the soccer balls and have a flat spot from the injection molding. Certainly not suited for GBC

  • 3 weeks later...
  • 4 weeks later...
Posted

Next question, are pneumatic cylinders stronger pushing or pulling? Instinct says its easier to suck air out than push it in but I suppose they should be equal as you are always pushing the air into either half.

Posted
  On 8/4/2024 at 7:40 AM, ukbajadave said:

Next question, are pneumatic cylinders stronger pushing or pulling? Instinct says its easier to suck air out than push it in but I suppose they should be equal as you are always pushing the air into either half.

Expand

Cylinders are always stronger in a push configuration. That is why you see large front end loaders with the cylinder in a reverse configuration with a lever.
The reason is that there is a bigger surface area on the end of the piston, where as on the other side, the rod is in the way and taking up surface area, thus contributing nothing to the exerted force.

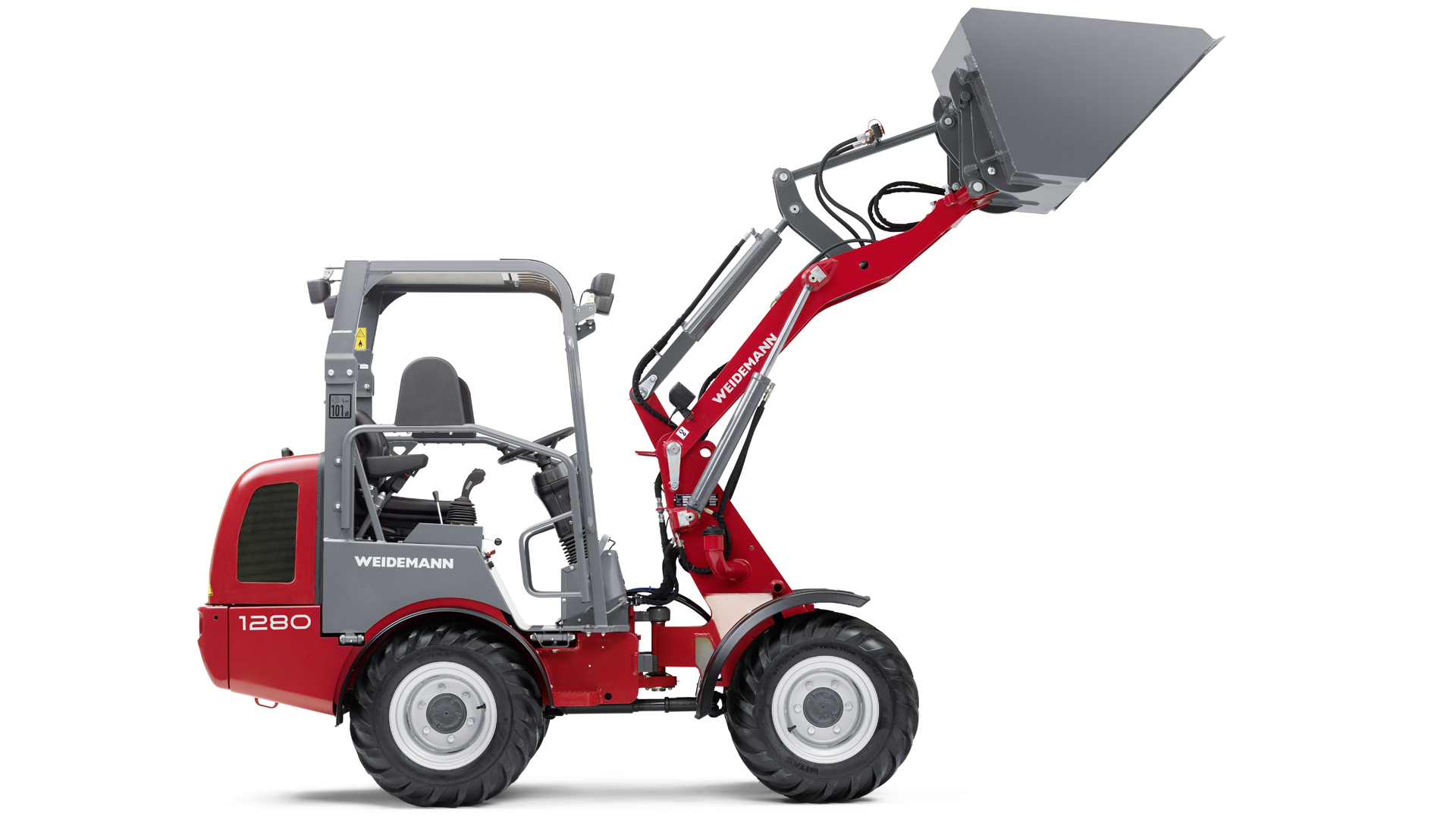

Compare these two images - The large machine pushes the rod to lift the bucket, where as the small machine pushes the rod to drop it.
extrabilder12664504_large.jpg?v=1686887638

83389a7a34fec283b9c7e4d9eff8bfc02bb6b716_Produkt_1_Weidemann_1280_1920x1080px.png?fit=clip&fm=png&h=1024&ixlib=php-3.3.1&w=1024&wpsize=large

Posted

Thanks to @Carsten Svendsen for the explanation. So in the example below the cylinders currently push to lower the heavy yellow panel box, then have to pull and fight gravity to raise it back to vertical. They would be more efficient attached to the bottom mounting point.
