MOCPilot – control LEGO® hubs + build custom remote profiles [Android, iOS, mac OS]

[_Ozzee_]

Hi everyone,
I want to share MOCPilot — an app for controlling LEGO®-powered creations (MOCs, official sets, robots/mechanisms) from a phone/tablet, and it’s also available on Apple devices including macOS.
You can build custom control “profiles” and automate behaviors using a Scratch-like block system.

Official site / Documentation

• Documentation home
• Quick start

What MOCPilot does

1) Profiles (control layouts)

• Create a custom “profile” per model (your own MOC or a set)

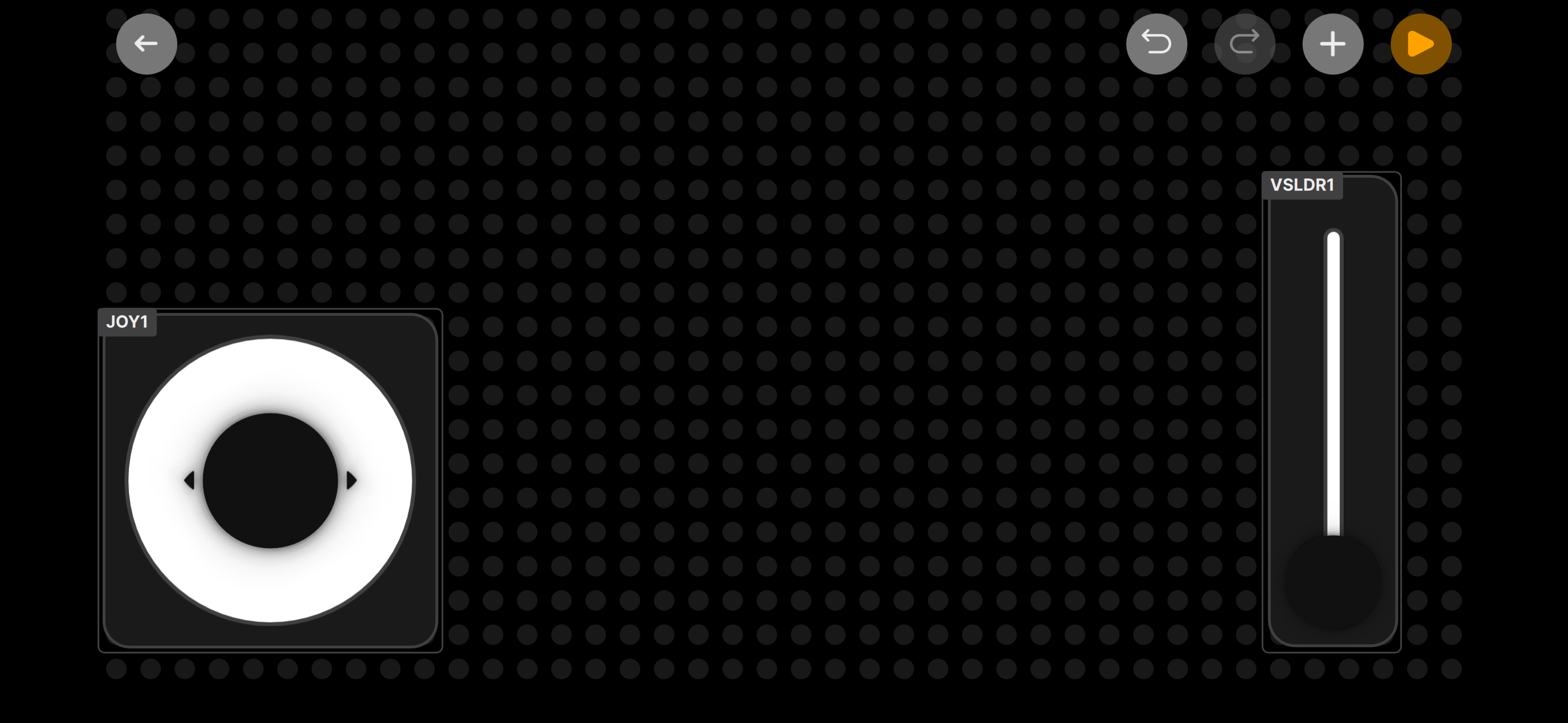

• Add on-screen controllers (steering, sliders, buttons, etc.) and connect them to motors/ports

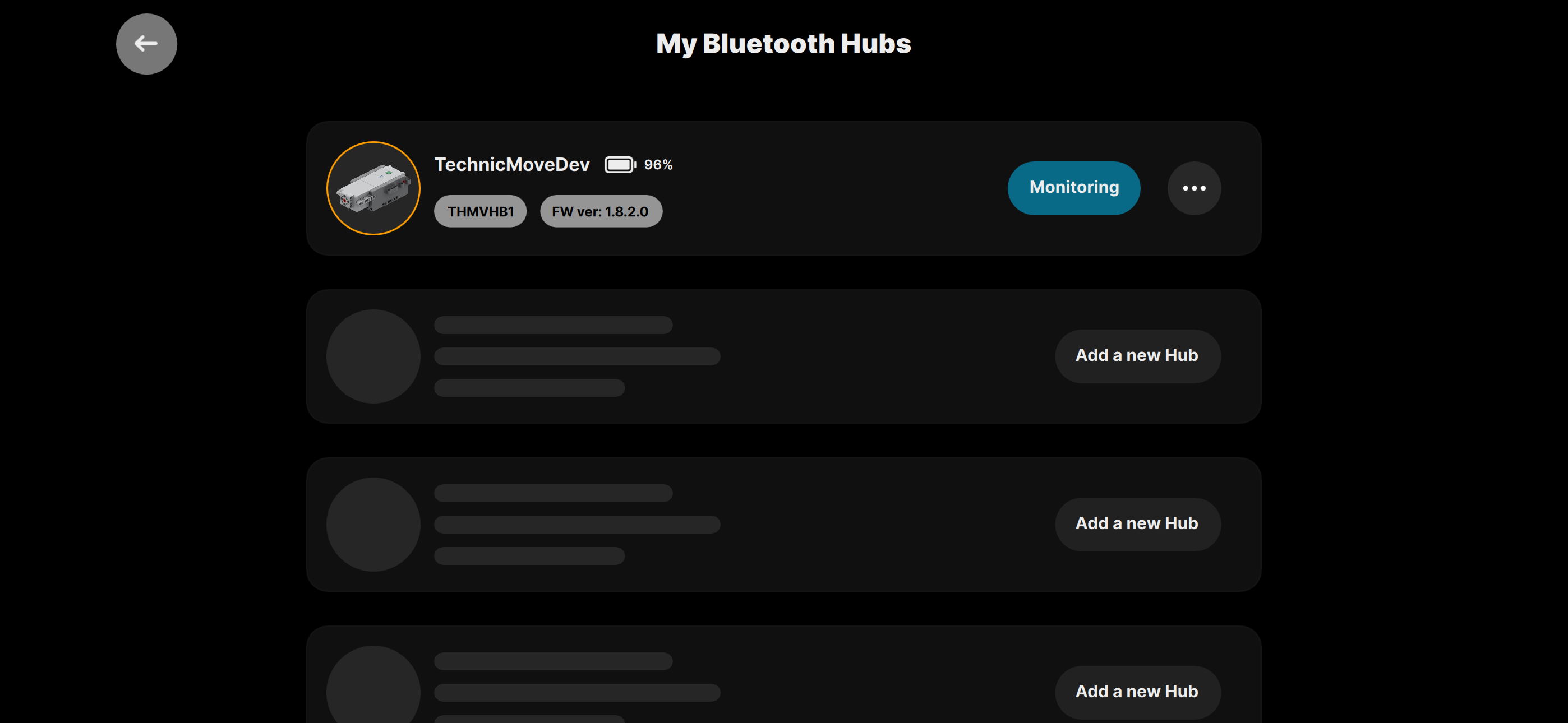

• Monitor hub status + sensor values in real time

2) Gamepad support (full controller driving)

• You can connect a physical gamepad to your phone/tablet/Mac and drive your model with sticks/triggers/buttons
• MOCPilot provides dedicated gamepad blocks you can use inside a profile program, so gamepad inputs can directly control motors or trigger custom logic (e.g. gears, lights, sequences, modes)

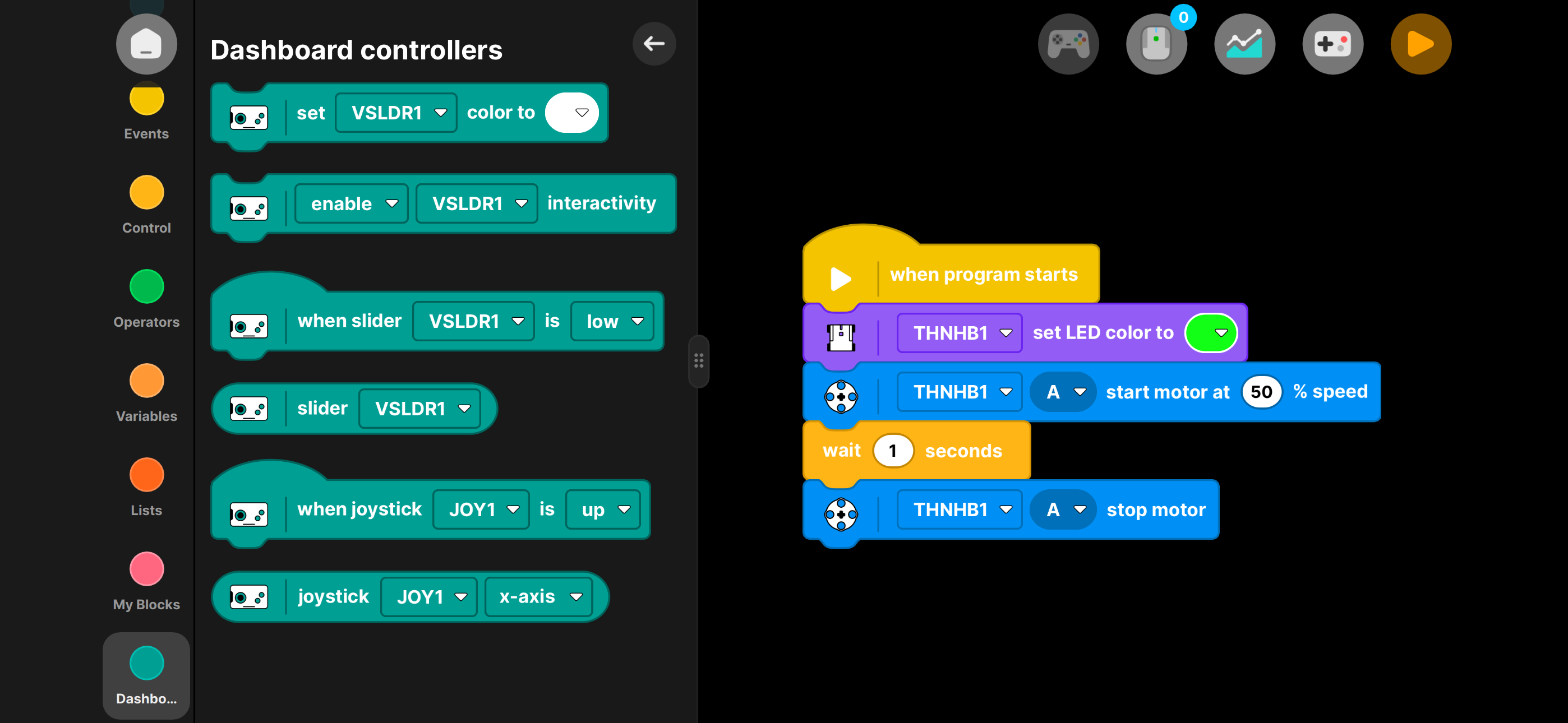

3) Visual programming (Scratch-like blocks)

• Drag-and-drop blocks to build anything from simple drive code to automation sequences
• Use events/logic to react to sensors and hub state
• Works offline for designing/testing your programs

4) Multi-hub builds

• A single profile can control multiple hubs at once
• By default you can add up to 2 hubs per profile; can be extended up to 5 hubs via extra hub slots

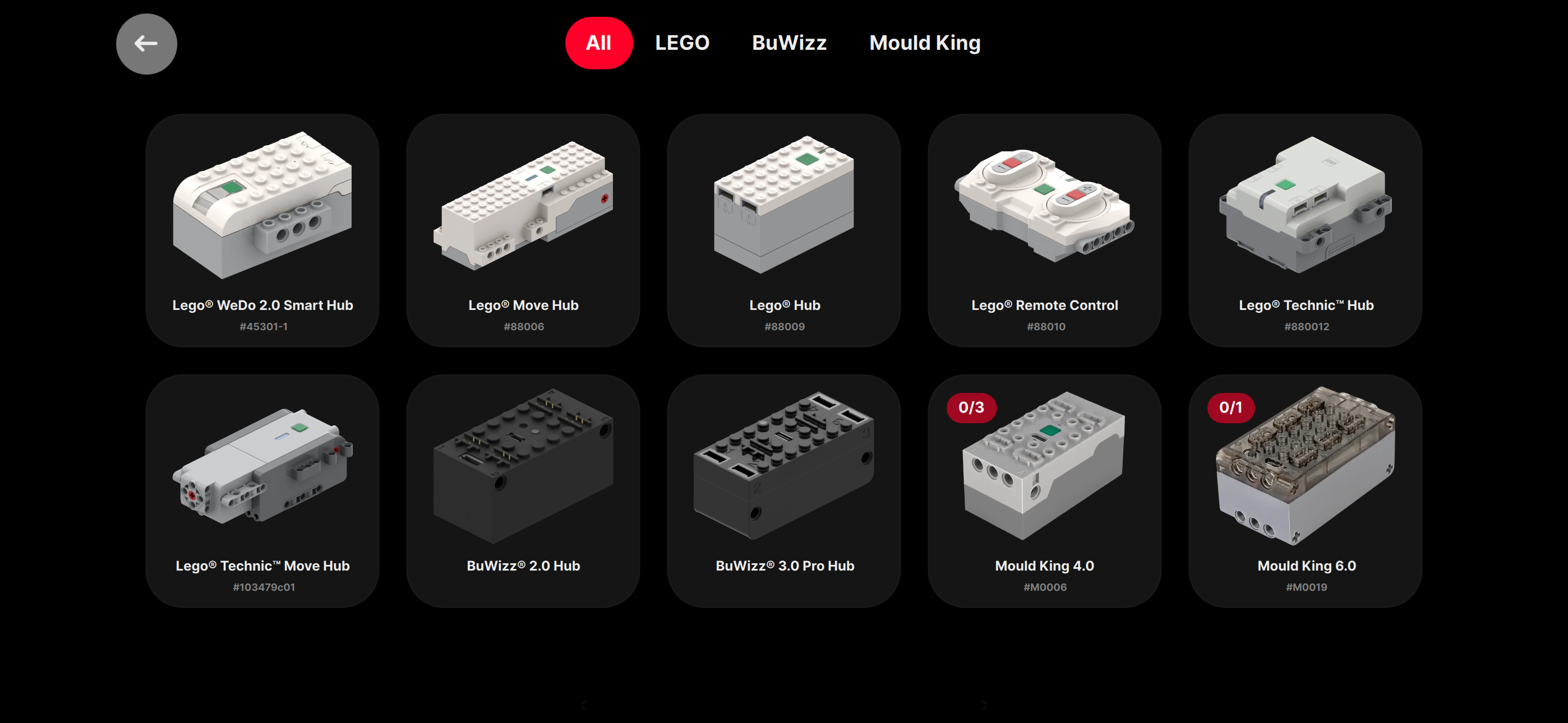

Supported hubs

• LEGO® WeDo 2.0 Smart Hub (45301-1)
• LEGO® Technic™ Hub (880012)
• LEGO® Technic™ Move Hub (103479c01)
• LEGO® Move Hub (88006)
• LEGO® Hub (88009)
• LEGO® Remote Control (88010)
• LEGO® Large Hub (88016) (not available on iOS)
• BuWizz® 2.0 Hub
• BuWizz® 3.0 Pro Hub
• Mould King 4.0 (M0006)
• Mould King 6.0 (M0019)

Supported motors

• Technic™ Large Motor (88013)
• Technic™ XL Motor (88014)
• Large Angular Motor (88017)
• Education Large Angular Motor (45602)
• Medium Linear Motor (88008)
• Simple Medium Linear Motor (45303)
• Train Motor (88011)
• Medium Angular Motor (88018)
• Medium Angular Motor (45603)
• Small Angular Motor (45607)
• Light (88005)

Supported sensors

• Color & Distance Sensor (88007)
• Distance Sensor (45604)
• Color Sensor (45605)
• WeDo 2.0 Tilt Sensor (45305-1)
• WeDo 2.0 Motion Sensor (45304-1)

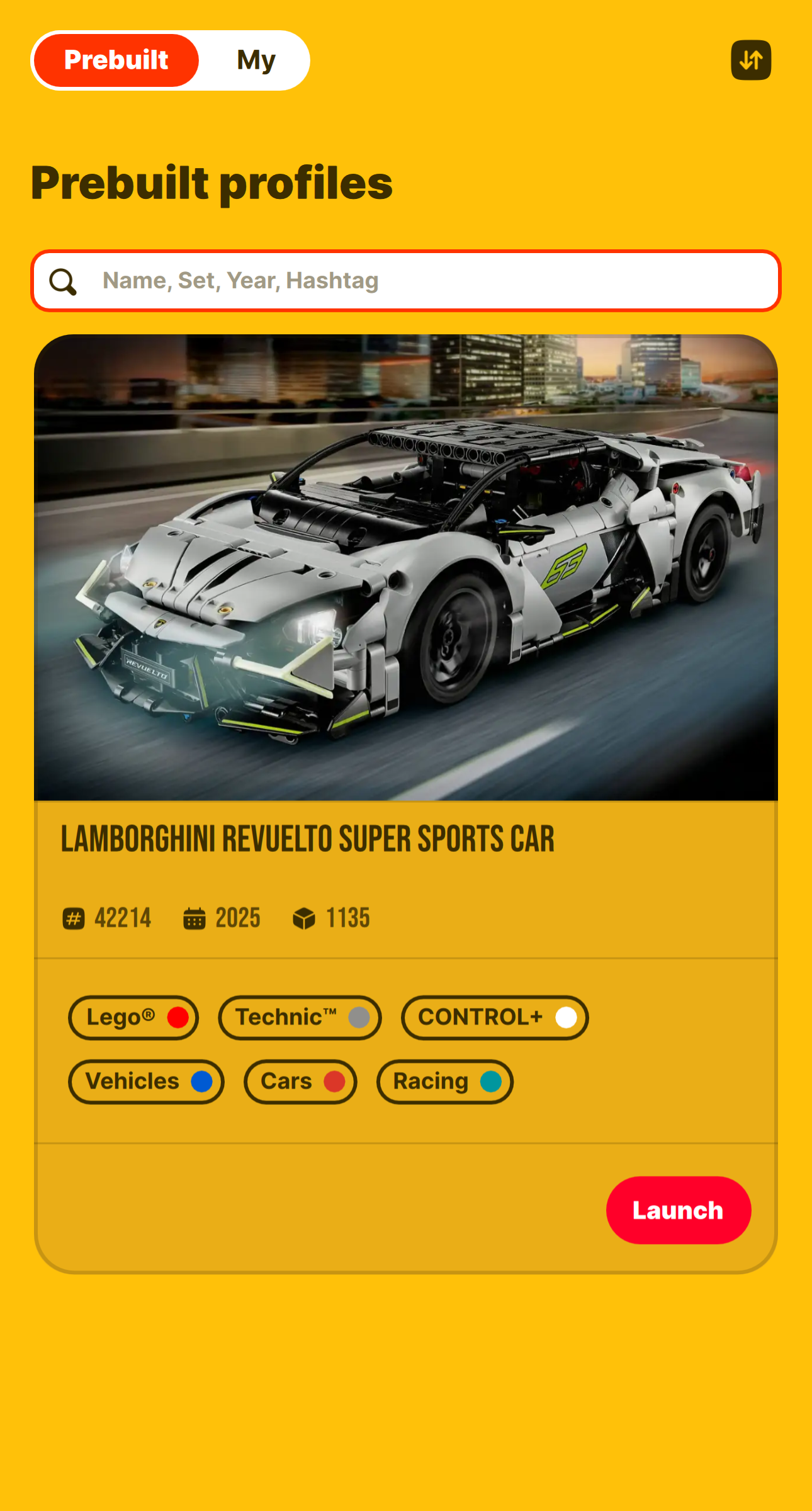

Prebuilt profiles (official sets / ready-to-run)
MOCPilot includes Prebuilt profiles so you can quickly control supported official sets and also learn from ready-made block programs.

Important detail: you can experiment and edit a prebuilt profile, but changes aren’t saved — it resets to the original version next time you open it.

Typical use cases

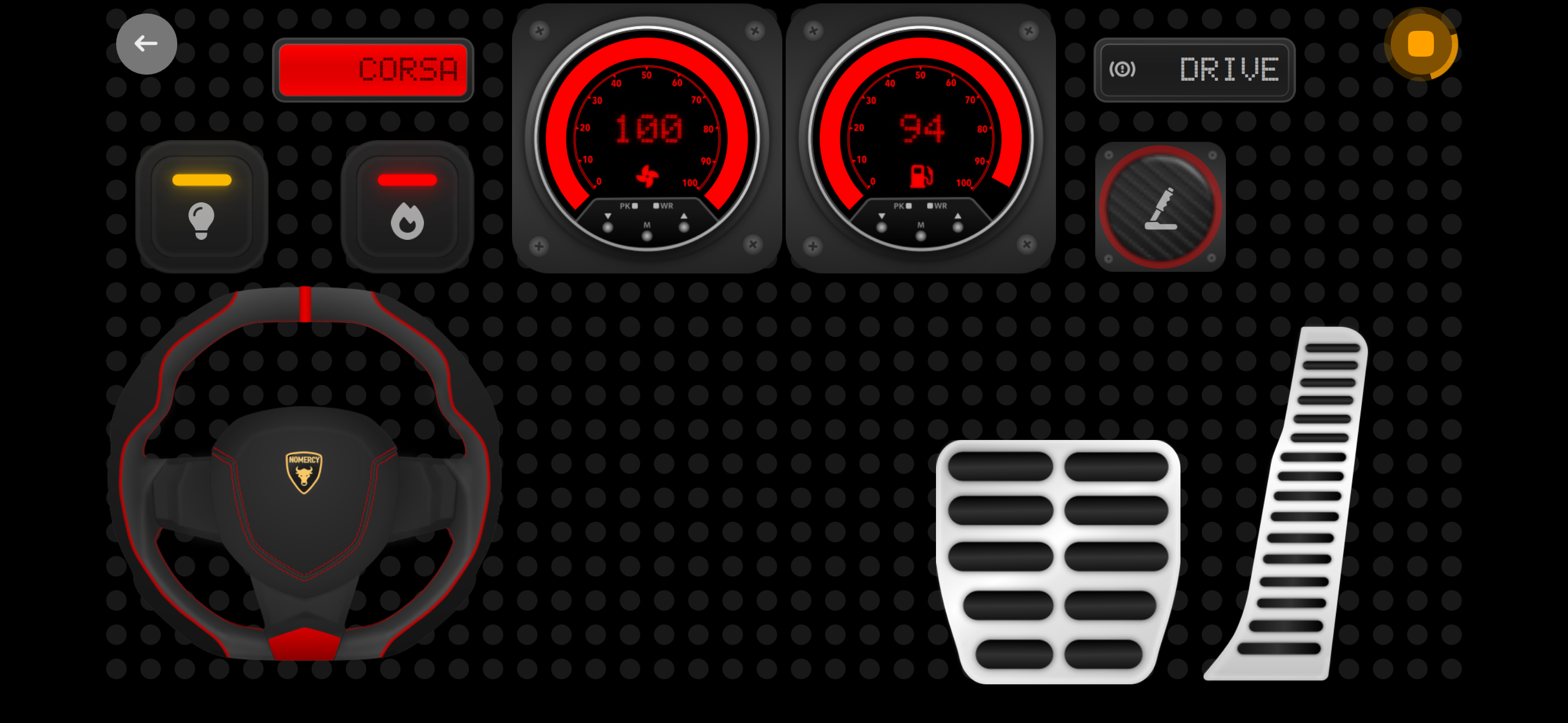

• Drive & steer Technic vehicles with a clean dashboard UI (on iPhone/iPad/Android tablet, or on a Mac)
• Use a gamepad for realistic driving feel, plus custom actions mapped to buttons
• Create realistic sequences (startup, shifting, lights) using blocks
• Program sensor-based behaviors (distance/color/tilt triggers)
• Control complex creations by splitting functions across multiple hubs (drive + gearbox + crane + lighting)


Download

• Google Play (Android)
• Apple App Store (iPhone/iPad)
• Mac App Store (macOS)

Edited 15 hours ago by _Ozzee_
The formatting has been updated, and additional screenshots have been added.
