Time bridge - a steampunk clock

[Davidz90]

Here's a project I have been busy with for the past few months:

In general, the goal was to create a contrast between orderly, architectural base and somewhat chaotic, steampunk-styled mechanism on top.

Here's a better look at the mechanism:

It consists of three major modules: Main dial with time and calendar in the front, the actual clock mechanism in the center and striking mechanism in the back.

The front dial looks like this:

The two bottom dials are day and month. Behind month pointer, there's an encoding wheel that encodes the length of particular months. The day dial has 32 divisions and at the end of the month, the hand jumps from 28,30 or 31 to 1.

And here's the striking mechanism:

The key part is the spiral-shaped "crown wheel" that encodes numbers 1-12. Gear rack (behind propeller piece) is allowed to fall on the crown wheel. Then, the mechanism lifts it 1 toth at a time, striking the bell. The number of strikes will depend on how far the rack has fallen, which depends on the crown's position. This is a varian of a more common "rack and snail" mechanism; the snail cam was very problematic to make wih Lego, hence I came up with the crown idea.

Here's the base under construction:

The internal Technic reinforcements are sturdy enough to use the arches of the bridge as handles, so that the whole thing can be moved with ease. There's also enough internal space to install lighting:



A video of the clock is here:







[allanp]

Lovey mix of art and engineering, very impressive.

[Davidz90]

5 hours ago, allanp said:

Lovey mix of art and engineering, very impressive.

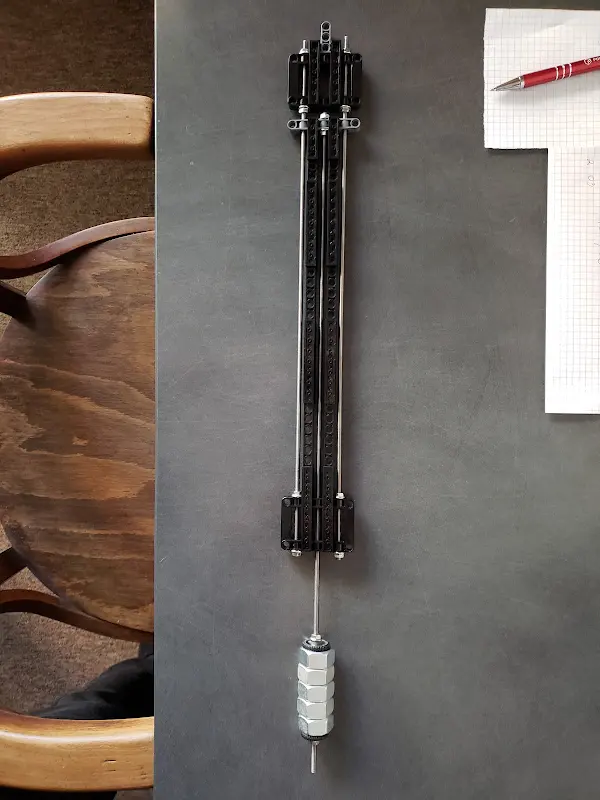

Thank you! In terms of engineering, one of the novelties in this clock is so-called gridiron pendulum. It uses an array of rods made of different thermal expansion materials so that the whole thing doesn't expand. Normally, they are made out of brass and iron. Here, I used Lego (ABS plastic) and steel. It looks like this:

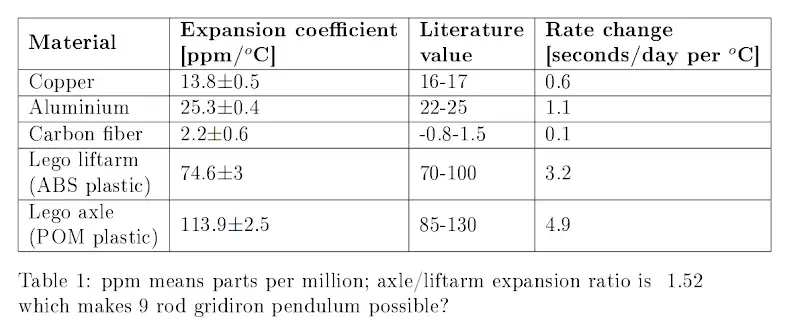

and to build it, I had to measure the exact thermal expansion coefficient of the bricks (ABS plastic has a wide range). Results were as follows:

Steel is missing from this table, but it similar to copper; Lego expands about 4 times as much as steel. Interestingly, liftarms and axles are made out of different plastic and they have quite a different expansion coefficient. This can be used to make pure-Lego gridiron pendulum or some other contraptions where something moves with temperature (thermometer?).



[jorgeopesi]

I do not have any idea about clocks but that is a lot of an awesome work, congratulations.

[Jurss]

Really impressive, it is not only clock with technical features, but also really piece of art,

[Davidz90]

13 hours ago, jorgeopesi said:

I do not have any idea about clocks but that is a lot of an awesome work, congratulations.

Thanks! Yeah, it is a rather niche topic.

4 hours ago, Jurss said:

Really impressive, it is not only clock with technical features, but also really piece of art,

Thanks! Indeed, that was a goal here; in the past I had a few ornamental clocks and a few complicated ones, but never both.

By the way, I forgot to mention that thanks to the temperature-compensated pendulum, the clock keeps time to within +-2 seconds per day; it is one of the most accurate ones I have built.
