[MOC] John Deere X9 1100 with HDF35 Header

[Reddish Blue]

MOST FUNCTIONAL combine harvester in LEGO City scale
FIRST-TIME-EVER feeder with both TILT and HEIGHT adjustment built from LEGO pieces
FIRST-TIME-EVER hinged draper header with flexible cutterbars and rotating reel built from LEGO pieces

SEARCHING for the ultimate LEGO combine?
Is it harvest time on your LEGO farm but you don’t have the right combine? Or do you have a combine but it's not functional enough? Maybe you're a fan looking for the perfect model to display on your shelf?

DISCOVER! The largest John Deere combine harvester, the X9 1100, built from LEGO.
This model, just like the original, has groundbreaking and innovative features, unique solutions, techniques and functions never seen before. The model is made in LEGO City scale with every piece serving a function in the final model. Explore this amazingly detailed and complex build that combines the traditions of John Deere machines with the creativity of LEGO building!

BUT GET READY. This isn’t just another “simple” combine harvester.
On the outside, it might look like just another LEGO City combine, but inside, it rivals -and in many cases surpasses- the best Technic models in both detail and functionality.





For more pictures check    Instagram    Rebrickable    Flickr



EXPLORE the main functions:

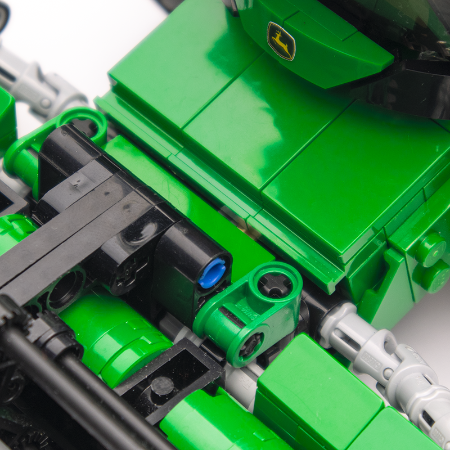

	Adjustable Feeder BOTH the height and tilt angle of the feeder can be adjusted separately using the Hand of God (HoG) controls located on both sides of the combine. This allows for precise height adjustment also with maintaining the set tilt angle.

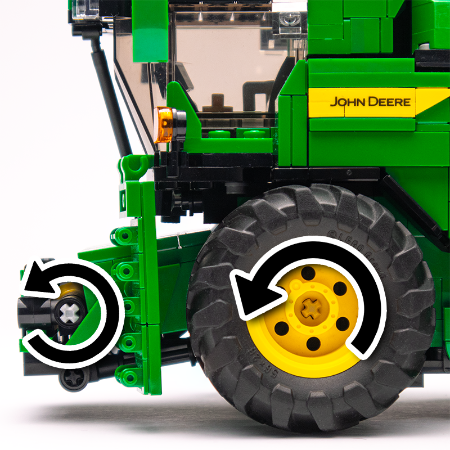

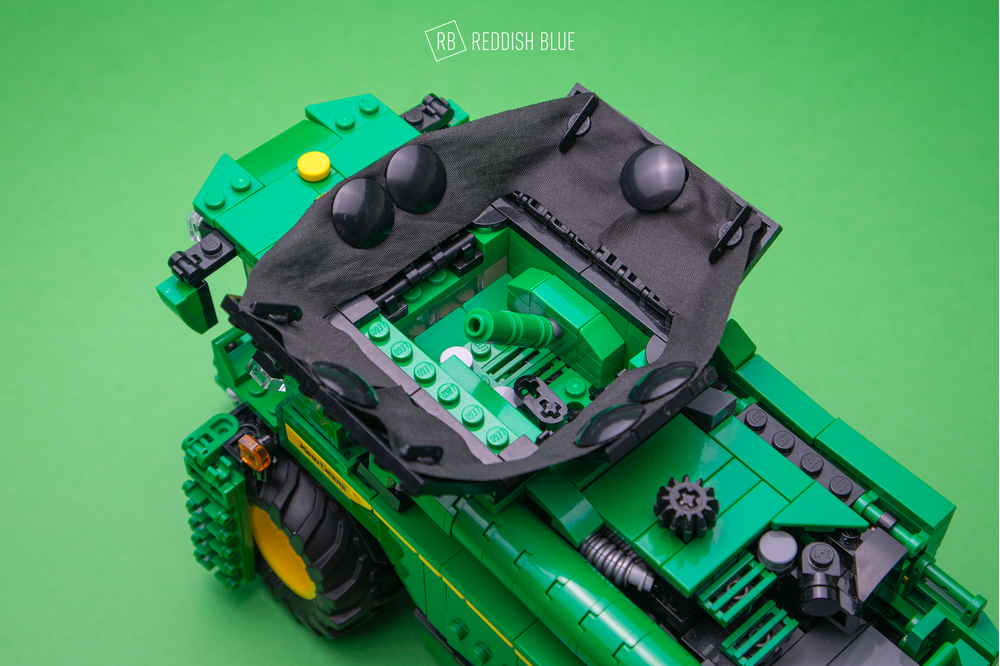

	Drive of the Feeder The feeder is driven by the front wheel and can be turned on and off using a switch located in the grain tank. The half-shafts on the feeder are geared to reflect real-life machinery, causing the reel on the attached cutting platform to rotate at 1.2 times the travel speed. This feature enhances realistic operation and provides an authentic play experience.

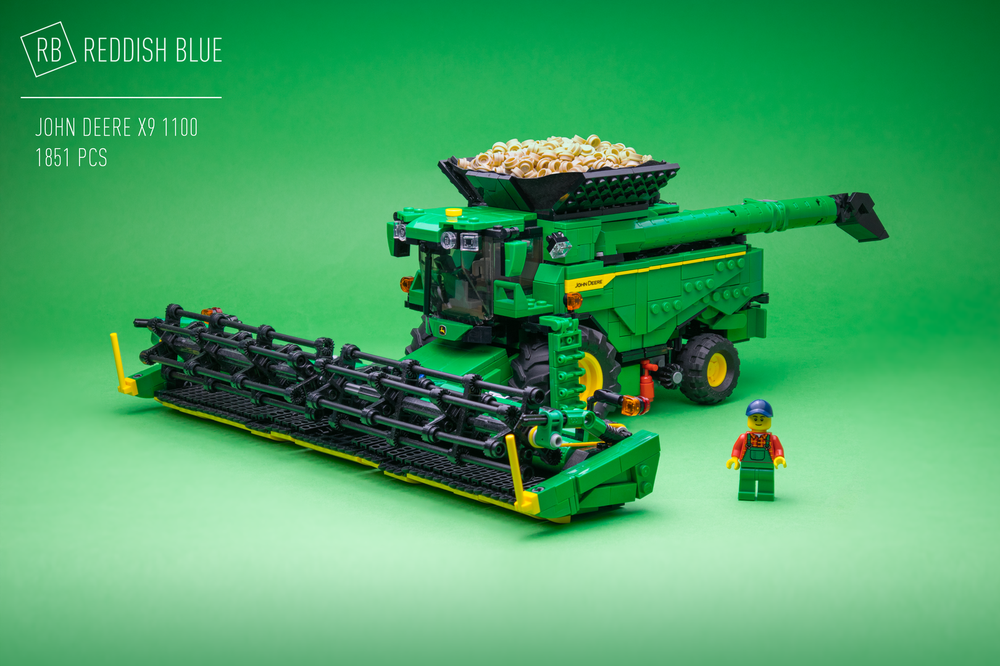

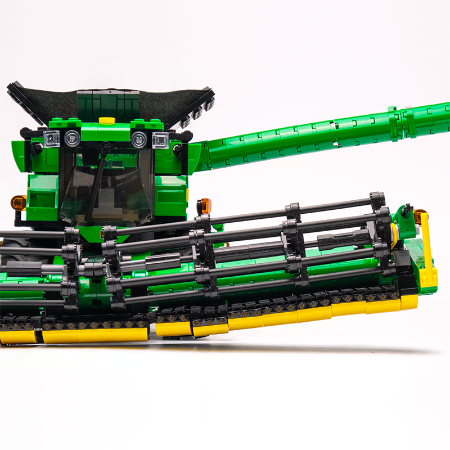

	Detailed and Functional Header This is the FIRST-EVER hinged draper header with flexible cutterbars and rotating reel built from LEGO pieces. To follow the ground, the header wings can move up and down independently, with a total flexing of 16,5° while maintaining the reel's rotation. The knives of the flexible cutterbar are designed to adapt to the shape of the ground, maximizing contact.
	Easy Header Attachment Headers can be easily attached using the two axles located on the feeder, followed by connecting the necessary drive to the feeder half-shafts as required.

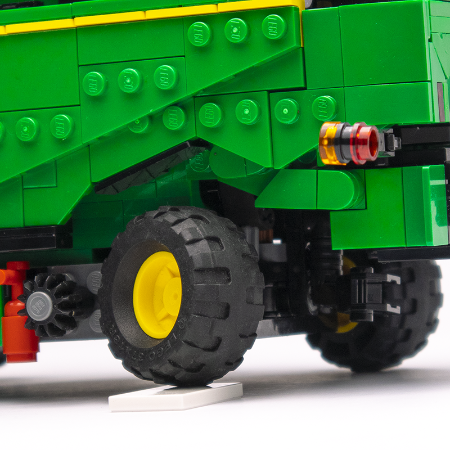

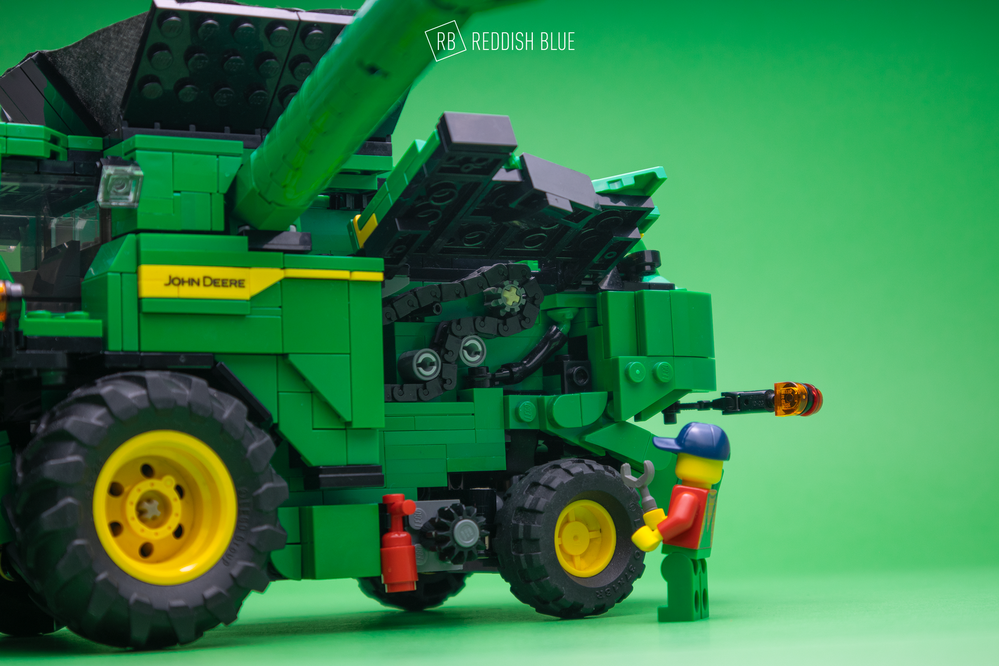

	Steerable and Moving Rear Suspension The rear suspension features a rigid axle design, similar to real combines, providing smooth moving on rough terrain. Steering is precise and easy to control using the HoG behind the grain storage, allowing users to maneuver the machine with ease, even in tight spaces.

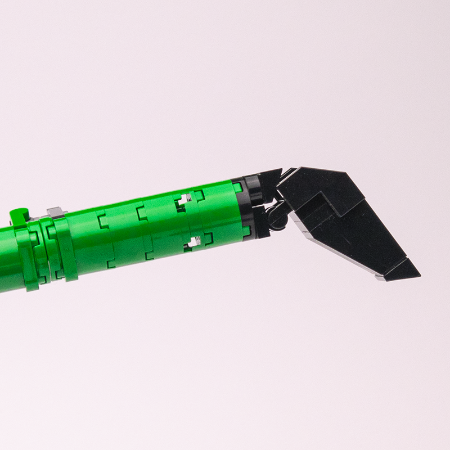

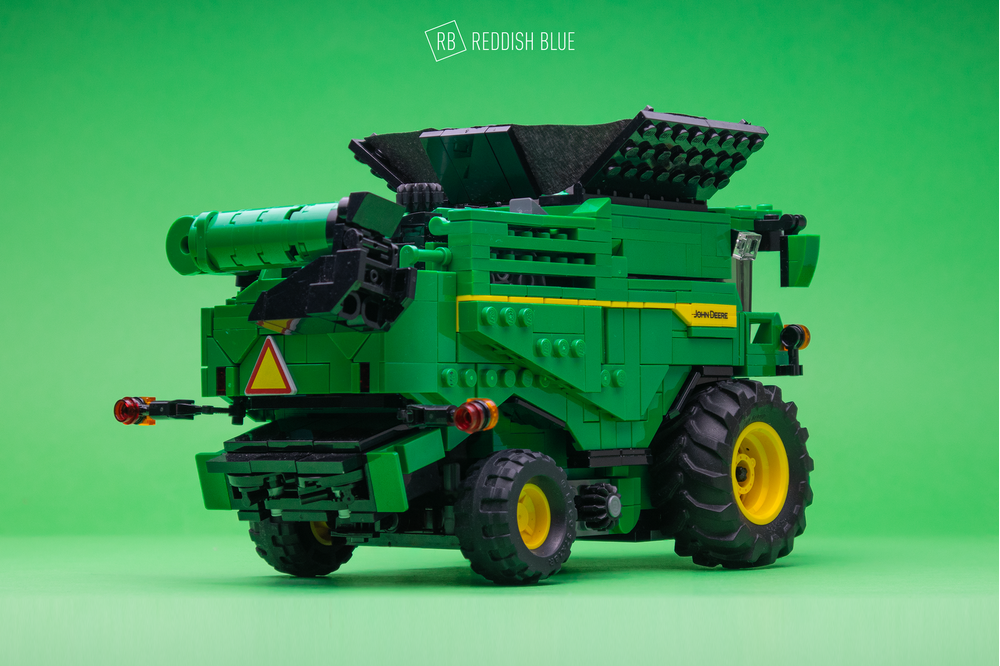

	Adjustable Unloading Auger The combine's unloading auger can be folded for safe road transportation or fully opened for emptying grain during harvesting. The angle of the auger spout can be adjusted depending on its use.

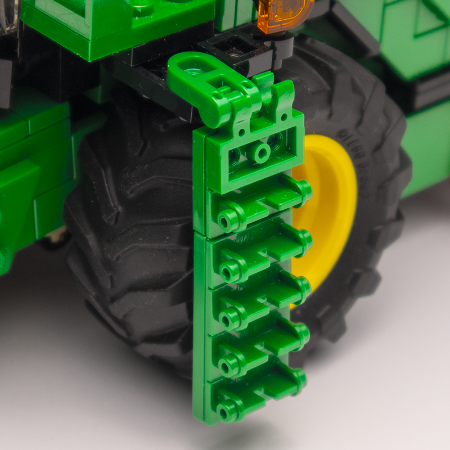

	Rotatable Ladder The ladder on the combine can be rotated, offering flexibility for harvesting tasks in the field or for transportation on roads.

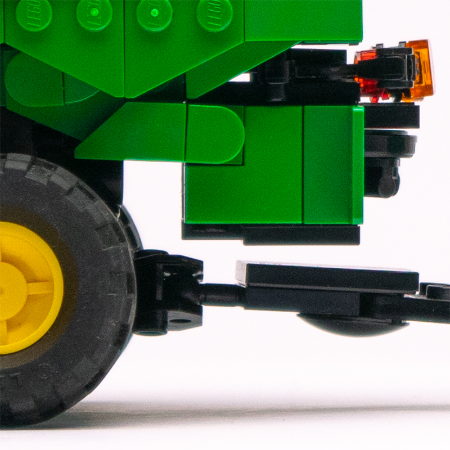

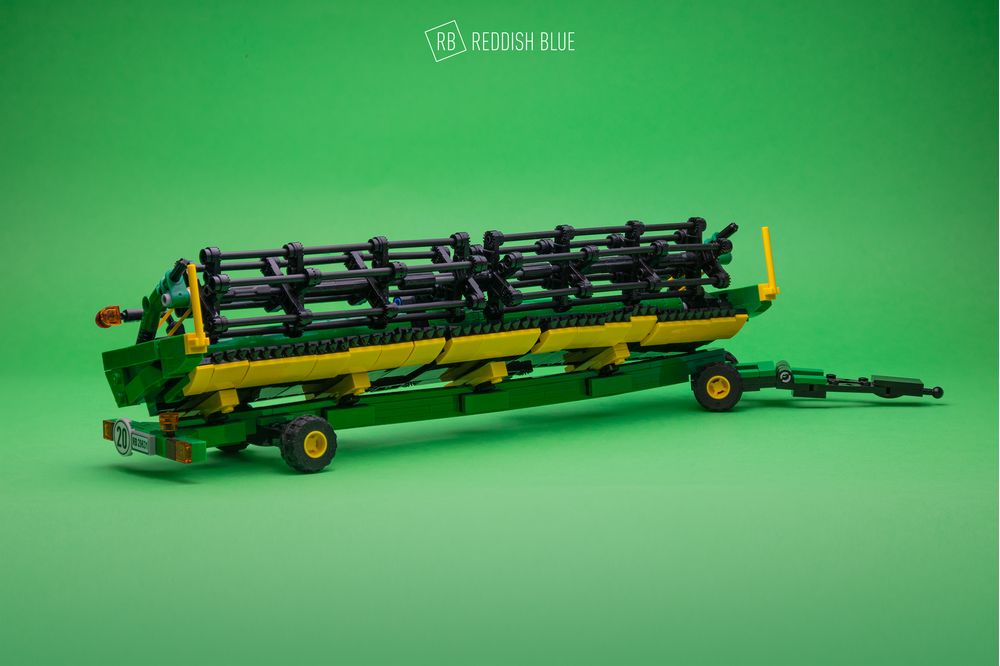

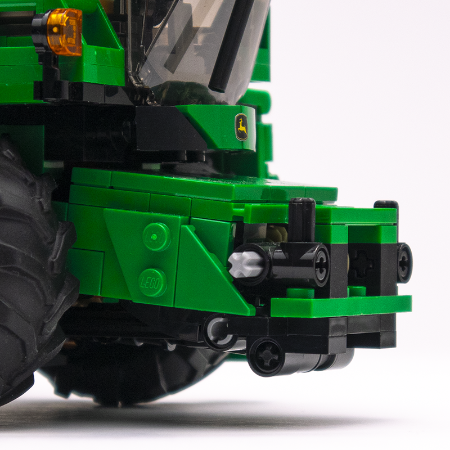

	Standard Hitch The combine has a standard hitch for trailers equipped with towing balls, such as the Zurn cutting platform trailer. This hitching system allows for the quick and easy attachment of various accessories, increasing the combine's versatility and usability.

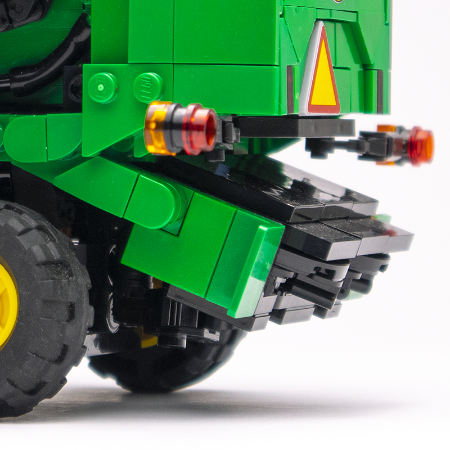

	Adjustable Chopper Tilt Angle The tilt angle of the chopper can be adjusted depending on the task, whether it be harvesting or towing.

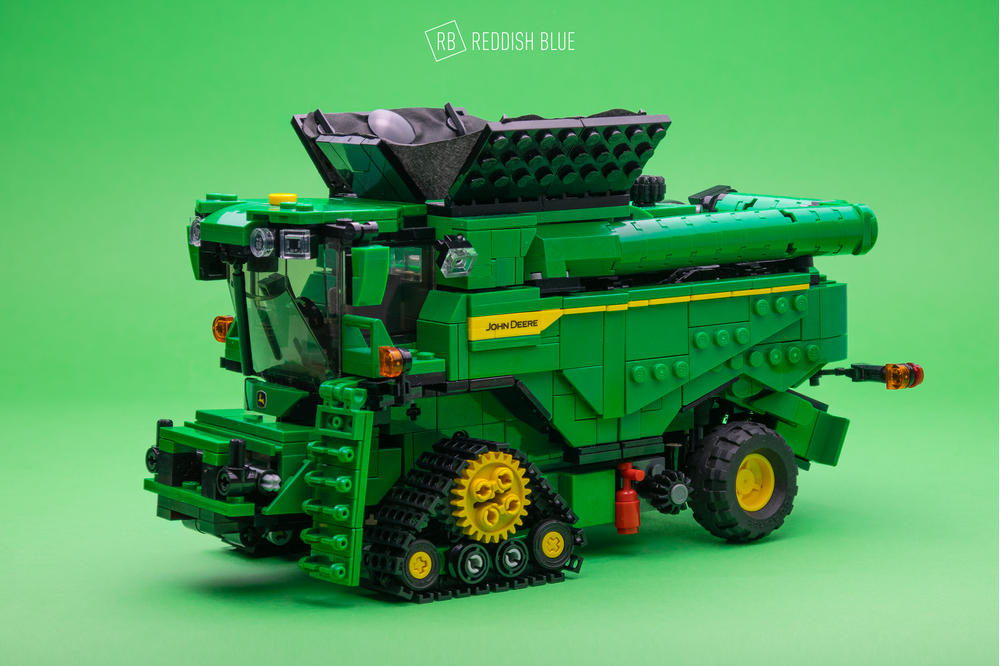

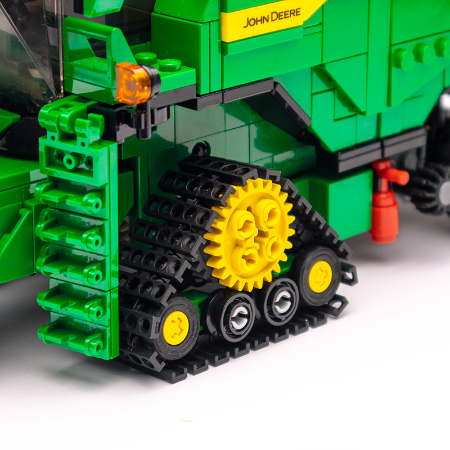

	Option for Front Tracks The front wheels can be replaced with tracks in just a few simple steps. The tracks are designed to mimic the movement of real tracks, closely following the ground. Attention: Could not drive the feeder due to the high torque required and the slippery surface of the track pieces.

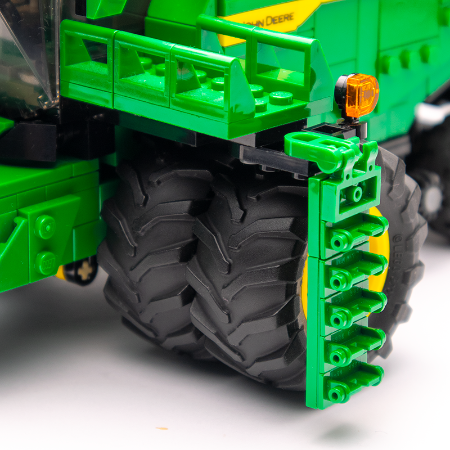

	Option for Dual Front Wheels The front wheels can be easily replaced with dual front wheels in a few simple steps. Additionally, the ladder will be widened to ensure continued usability. The advantages of dual front wheels are comparable to tracks but with fewer components, making it more cost-effective. ++ Unlike tracks, this does not affect the gaming experience.

...and many small details waiting to be discovered by You!



For more pictures check    Instagram    Rebrickable    Flickr
