New two-piece differential - details & comparison

[kbalage]

I took the new differential from the 42109 App-Controlled Top Gear Rally Car and compared it to the previous generations, also tried to see if there are any changes/improvements/benefits:



[jorgeopesi]

Good video thanks.

[nerdsforprez]

Interesting..... Looks based on what you covered the new one might have several advantages over the old....

[efferman]

Thanks for the Vid. Is it possible to flip the 28Z gear to make the Diff 3.5 wide?

[kbalage]

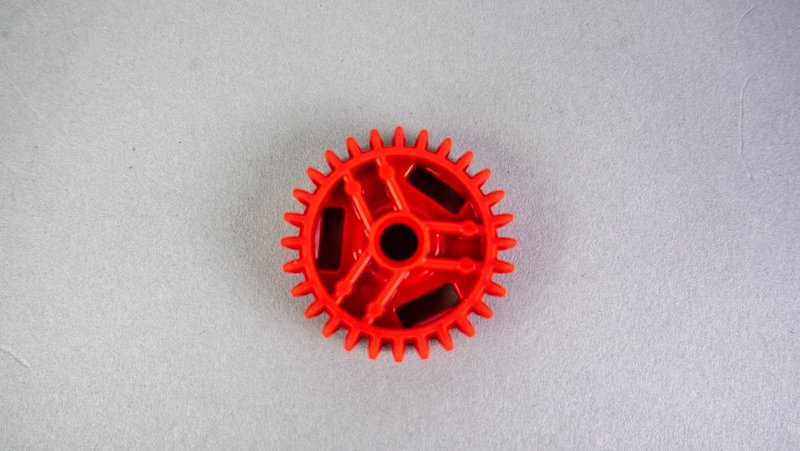

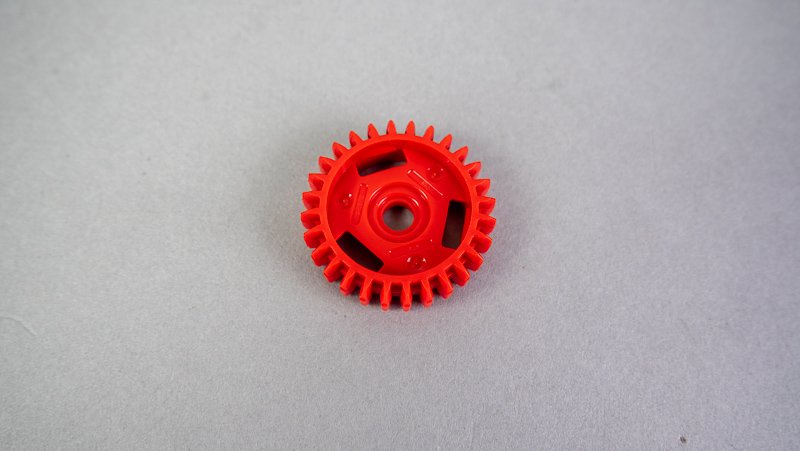

@efferman it is not possible, the other side is different and you cannot connect the clips:



[efferman]

Thanks

[Vectormatic]

I never realized the 4L diff could be combined with a driving ring for a locking diff, ill put that down to my dark ages putting a clean break between old studfull and new studless

On the topic of that diff though, AFAIK you can drive it perpendicularly, with the crown wheel, but i might be misremembering.

Good to see the new diff offers more versatility, both with the option for a diff lock and the option for both parallel and perpendicular drive, now it remains to be seen if lego will use this new diff in all sets requiring a diff, or just for the higher load applications like an RC car.

[1963maniac]

What is the part/s number/s for this new differential?

Got it from brickset. LBG 65414, Red 65413, & 5X tan 6589.

Edited December 31, 2019 by 1963maniac
found answer.

[kbalage]

  On 12/31/2019 at 8:08 PM, 1963maniac said:

What is the part/s number/s for this new differential?

Expand

The full LEGO numbers are 6285646 & 6285647

[sawyer klegr]

So glad that they made a new diff design, I always found the old design to weak.

[grum64]

  On 12/31/2019 at 10:37 PM, sawyer klegr said:

So glad that they made a new diff design, I always found the old design to weak.

Expand

And very difficult to assemble

[MinusAndy]

I reckon you could shim the planetary gears with acetate sheet to increase the friction in this and make it semi-open.

[Didumos69]

Can you have axles with end-stop in the new diff. I mean with the end-stops inside the diff?

EDIT: At the red gear end I mean, the other end can only take an axle outside-in.

Edited May 8, 2020 by Didumos69

[agrof]

I just tested with 4L axle with stop, it has not enough space for the end stop collar. It would require significant power to assemble too, so I didn't forced.

It was a good thought, but would have lead to the next: how to integrate it in technic frames. :)

[Didumos69]

Thanks for testing this out @agrof!

  On 5/8/2020 at 2:10 PM, agrof said:

It was a good thought, but would have lead to the next: how to integrate it in technic frames. :)

Expand

There would have been less need to integrate them in frames ;-).

Edited May 8, 2020 by Didumos69
