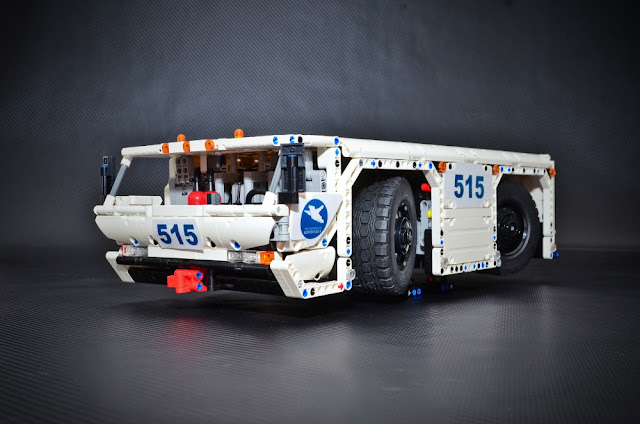

filsawgood Posted January 6, 2016 Posted January 6, 2016 (edited) HI! Today i want to present you my new work - Aircraft Tug XL I started this project a year ago, but bring to mind it succeeded only now. Meet Aircraft Tug XL (Pushback tug/Tractor tug). The model is an extension of the project Aircraft Tug 2014, many of which I am personally not satisfied, and therefore had an idea to build something more functional, large and attractive. Thus was born the Aircraft Tug XL.Machines of this kind is mainly used at airports when towing aircrafts to parking or vice versa - to the runway. I think everyone who has ever been in the large airports, have seen similar tugs. Less a similar technique can be found in seaports or any other freight terminals that require towing heavy loads.This truck has four-wheel drive by two XL motors, independent steering front and rear axle on two servo motors, lifting mechanism cabin, as well as a system of four mechanical jacks driven by two motors L. Full remote management for that answer 3 infrared receiver, and power models provide two large battery pack located on the sides, and of course, he has V10 on board!The functional copy of the tractor completely original machine. The layout of the indoor units I came as close to real.Dimensions:D / W / H56/27/15 stud.445/220/120 mm.The model is made of 100% Lego parts except stickers - I made them their own. The basis of design I took the logo of the Khabarovsk airport - in the form of a flying bear. In Russia bears do not just walk down the street with balalykas, but also know how to fly :)I also worked on the detailed cabin from the outside to the inside. Now, in contrast to the previous tractor, the door is open, there is a full salon, which are two fire extinguishers, driver's seat and the passenger, levers, steering wheel, and monitor devices.Tractor turned quite powerful, as you can see by watching video. In practice, it is able to move from his seat and dragged to drag a weight of not less than 6 kg, as long as the batteries have been good charge :) You may see more information and photos on my blog Edited January 6, 2016 by filsawgood Quote
Sylvian Posted January 6, 2016 Posted January 6, 2016 Love the bear stickers! Awesome machine and defenitely an improvement over your previous rendition. Also like the interior very much :) Quote
dr_spock Posted January 6, 2016 Posted January 6, 2016 Nice. I've seen bears riding in Ladas but haven't seen bears fly before. Suggestion for the video, it was hard to read quickly with the font you used. A solid color font would have worked better or have the text display longer. Quote
braker23 Posted January 6, 2016 Posted January 6, 2016 Wow! I just love it, looks so sleek, it's very powerful and offers plenty of functions, can't wait to see the LDD file :) Quote
9 fingers Posted January 6, 2016 Posted January 6, 2016 If i could drive a monster like this. Uhu. Realy great work with all the details. Quote
Lakop Posted January 6, 2016 Posted January 6, 2016 That's a great model and a good scale. Love the functions and power, your presentation is excellent too. H Quote

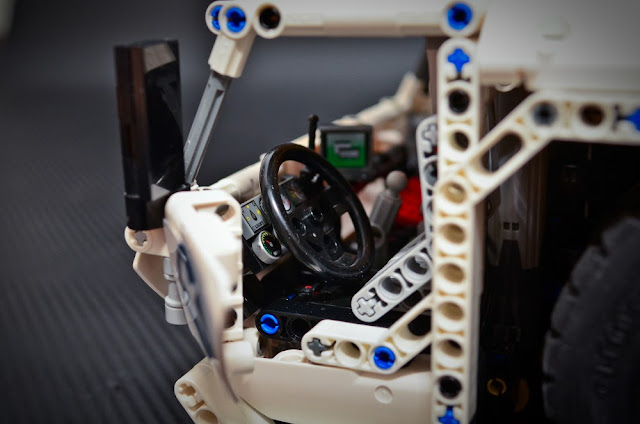

rm8 Posted January 7, 2016 Posted January 7, 2016 (edited) Very well detailed model! Love its cabin especailly! It looks like the cockpit of drift car with many gauges, drift handbrake and NoS bottles. And white body is true JDM;) Edited January 7, 2016 by rm8 Quote
filsawgood Posted January 8, 2016 Author Posted January 8, 2016 Thank you all for your kind words and comments in their future work will try all this into account. Quote
Andy D Posted January 18, 2016 Posted January 18, 2016 (edited) I just discovered this again. It is great! I really like all the functions. I am working on a MOC that has the steering and functions like your tug, but a different purpose platform. Thanks for sharing this! Andy D Edited January 18, 2016 by Andy D Quote
filsawgood Posted January 31, 2016 Author Posted January 31, 2016 (edited) I've made the building instructions for my Lego Technic Aircraft Tug XL. Now you may download it on my blog page Edited January 31, 2016 by filsawgood Quote
AFOLegofan66 Posted February 16, 2016 Posted February 16, 2016 Hi I am building this terrific MOC and it is going well....thanks for sharing the instructions!! Quote
Elsior Posted February 16, 2016 Posted February 16, 2016 Great MOC! Very kind of you to share the instruction. Quote
RPABLOM Posted February 17, 2016 Posted February 17, 2016 hi, how do you guys make that custom stickers? there is a program from lego? or something like sbrick but like a printer? Quote
OneMoreRobot Posted June 13, 2016 Posted June 13, 2016 (edited) 5735101078_13d14e0549_b by OneMoreRobot_NZ, on Flickr Greetings, I'm pleased to present my version of this great model. SBrick version in Qantas Airways livery. Thanks to Filsawgood for the instructions and to Jaap Technic for producing custom stickers. All functions work via two SBricks and iPad control including all steering options. 4 x PF Lights 1 x M motor -Cab Lift 2 x XL motors - All Wheel Drive 2 x Servo motors - Front & Rear Steering 2 x M motors - Chassis Lift 2 x 6AA Battery packs 2 x SBricks For Australian AFOL's this shall be on display @ BrickExpo Canberra July '16, Brisbricks Brisbane October '16 & Brickvention Melbourne January '17 QFTug9 by OneMoreRobot_NZ, on Flickr QFTug by OneMoreRobot_NZ, on Flickr QFTug4 by OneMoreRobot_NZ, on Flickr QFTug2 by OneMoreRobot_NZ, on Flickr QFTug6 by OneMoreRobot_NZ, on Flickr QFTug10 by OneMoreRobot_NZ, on Flickr Edited June 13, 2016 by OneMoreRobot Quote
filsawgood Posted June 13, 2016 Author Posted June 13, 2016 (edited) my first impression - WOW! Excellent design solution! He's definitely like me more than my... Edited June 13, 2016 by Blakbird Removed quote Quote
