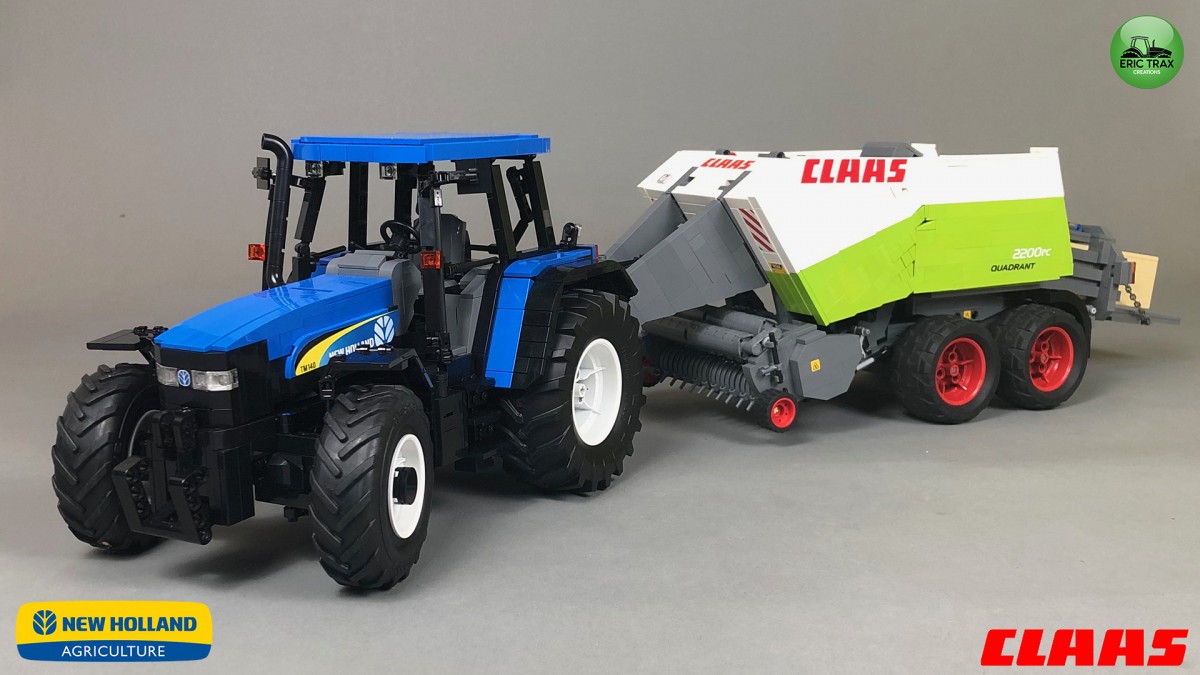

Ever since Lego released the 42054 set, I've been waiting for a smaller size agricultural tire to be able to build a medium-sized tractor. Unfortunately, there are no smaller agriculture tires, but I decided to build a medium size tractor :)








New Holland TM 140:

The model was built to create instructions. Knowing this, I've created a compact chassis that I can use in the future. The tractor has a drive with a Large motor with gear ratio 1:7 and steering using a servomotor. Three-point hitch systems are raising by the medium's engine . The front one can be detached. In addition, the power shaft drives the medium motor (gear ratio 1:3). The model has 4 functions so it is controlled by sbrick

I had to limit the amount of details so that everyone can easily build such a model after buying the instructions. The original fits very well with building from bricks. I am very happy with how it looks because it's hard to know that it's a LEGO model. The instructions have been created for me by M_Longer Creations. Thanks Marek!

Parts list in Rebrickable, Bricklink XML, Brickstore and png versions can be found here:
https://bricksafe.com/pages/M_longer/misc/nh140

Instructions can be bought at Sellfy and Rebrickable:

https://sellfy.com/m1longer
https://rebrickable.com/users/M_longer/mocs/

53794383_2145383045555572_81638867726782

Claas Quadrant 2200RC

I did not want to build only a tractor. I decided that I would build a straw baler. I chose the Claas Quadrant 2200 RC. It seemed to me that it would be possible to copy it very well in bricks. The original machine has very many curves. In the end, I managed to build everything and put a lot of details. An additional function is moving the straw bales and the next ones can be put on the top of the machine.
