F1 Front Wing

[Asher]

(I thought I wrote a post about this last night but can't find it)

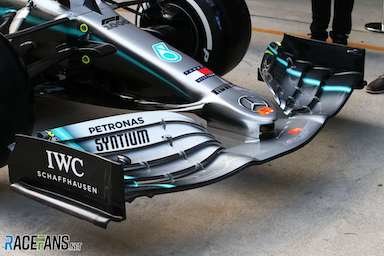

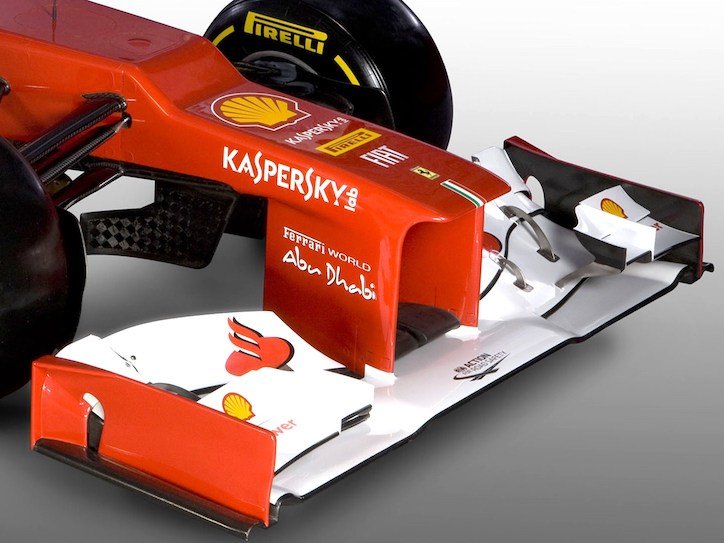

Has anyone tried to create a front wing of an F1 car with the several aerofoils (as they're called) instead of a simple slope?  See pictures.

Then there's the 2022 spec which is probably easier to do.  Here: https://www.artstation.com/artwork/WKaq0X

Edited October 30, 2021 by Asher

[Scoar Sonander]

The easiest way to do this is probably using flex axles with 1 stud offsets, but I have never tried this before.

[Jurss]

Some ninjago swords maybe?

But that newer is even more complex with those smaller wings on the sides

[Seasider]

I think @Jurss is along the right lines. I think you’d end up with something built with skinning parts like ninjago swords mounted in some form of system built endplate. far too a fine detailed structure to be Technic built I think

[Asher]

This sword?

If you could draw a rough sketch that would be helpful.

[marcus2388]

I think they are talking about something like this:



Either sword - or propeller

[Jurss]

1 hour ago, marcus2388 said:

I think they are talking about something like this:

It denepends much also on build scale. As model will go larger, there will be more options.

[imvanya]

How about this:

The color choices for the ski piece are a little limiting, though.

[Asher]

I feel ya, thanks all. It's always hard for me to think of the initial design. Once I see an inspiration, I can iterate over it many times over.

[adunitbx]

Love these solutions!

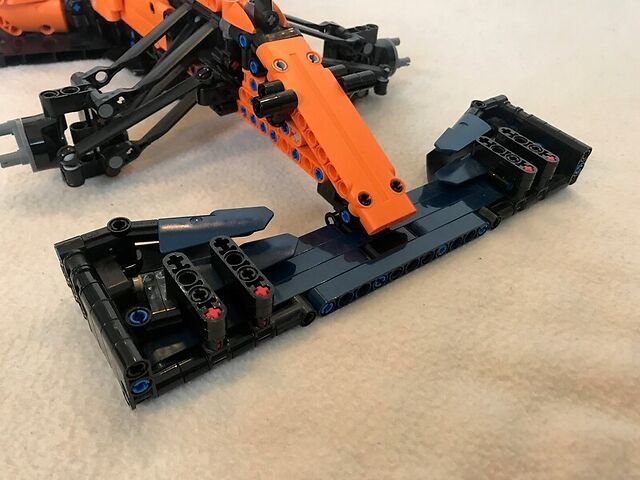

For an MOC I used this technique using technic parts:

Just a basic idea with a couple of flaps, turning planes, and an endplate.
