Driving newer turntable with worm gear

[doug72]

To allow for an improved & secure mounting when using a 1L worm with a Z60 turntable a new part required.

Similar to a LEGO Technic Cross Block 2 X 3 with Four Pinholes (32557)

New part required:
Cross block 2 x 2 with three pinholes, with all holes facing same way.

I am sure this would also be useful elsewhere in dealing with the half stud offset often required when mixing studded and studless technic parts.

[ozacek]

4 hours ago, Doug72 said:

Cross block 2 x 2 with three pinholes, with all holes facing same way.

A bit like those cumbersome alternatives ? :)

[doug72]

2 hours ago, ozacek said:

A bit like those cumbersome alternatives ? :)

Thanks - Looks good

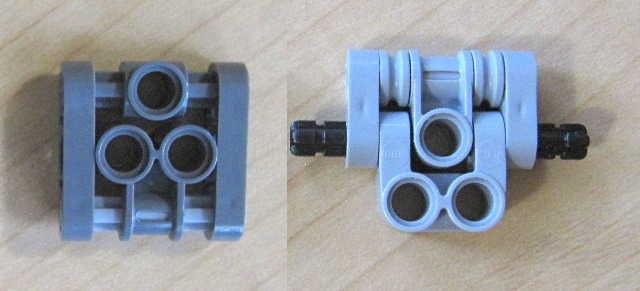

Now tested and the first (L) version works best & is stronger.



The 2L  axles in the second version (R) foul the turntable gear ring.

Edited May 24, 2019 by Doug72
images added

[Mechbuilds]

Why not just turn the turntable with a gear and turn that gear with a worm gear?

[ozacek]

17 minutes ago, Mechbuilds said:

Why not just turn the turntable with a gear and turn that gear with a worm gear?

I guess that could work, although it would depend on the actual use (in my specific usecase it wouldn't, at least not in any reasonable way).

[doug72]

52 minutes ago, ozacek said:

I guess that could work, although it would depend on the actual use (in my specific usecase it wouldn't, at least not in any reasonable way).

Had also thought about that solution but adds complexity & more friction into the drive.

Edited May 31, 2019 by Doug72

[powerwindows83]

im with whoever said just using the right gear with a turntable is probably the best idea :P
