New to LDD designer

[Russell1982]

Greetings all. My name is Russell and I have recently (rather foolishly) decided I would like to build my own lego tank and so with this aim in mind I downloaded LDD and have begun playing around.

after about 30 minutes I decided I would try and re-create Pawel "Sariel" Kmiec's (apologies for lack of correct type) studless transverse subtractor from his book "The unofficial lego technic builder's guide".

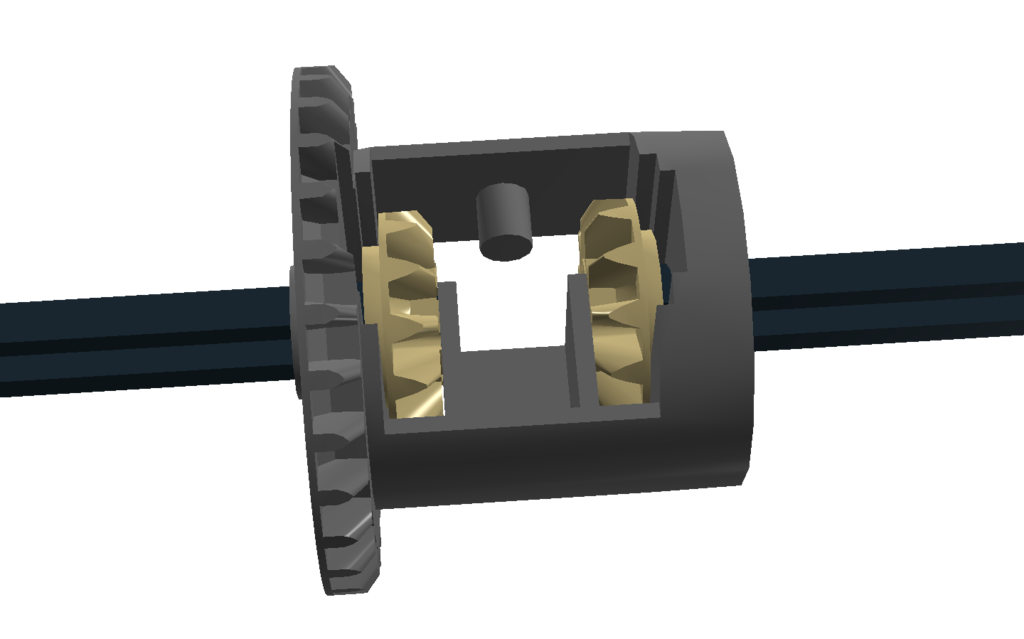

sadly I have run into an issue after the first stage, where I am trying to install the differential inside the square brick and couldn't but eventually figured this out, however I the discovered I could not get the program to allow me to put all three conical whel gears into the dif. I will attempt to insert a picture to illustrate this.

is this something that I am doing wrong or is it a bug issue? any assistance and advice to me would be very much appreciated

Russell

I have just discovered that you are required to rotate the gears to make them mesh so have resolved this issue but advice is still very welcome

[zmasterbrick]

I've built extensively in LDD, spent hours tweaking angles and turing things inside out. You'll find the program can be a little quirky at times. My advice is to just move on. Don't get hung up too long on specifics, it can hinder the creative spirit.

[Nachapon Lego]

The conical wheel is 12 teeth. So just place the middle one first. and hinge(rotate) it 15 degree (360 / 12*2 = 15). Then you can place 2nd and 3rd wheels.

Edited March 28, 2015 by bbqqq

[zmasterbrick]

The conical wheel is 12 teeth. So just place the middle one first. and hinge(rotate) it 15 degree (360 / 12*2 = 15). Then you can place 2nd and 3rd wheels.

Agreed. I should have pointed out what I was trying to say a little better. Sometimes when you fidget with a piece forever, then save, the program will reject it when you reopen it. I've just found that it is easier to assume a few things to keep the mojo flowing.
